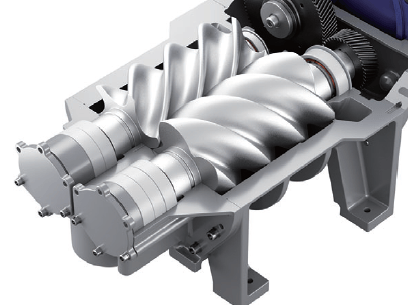

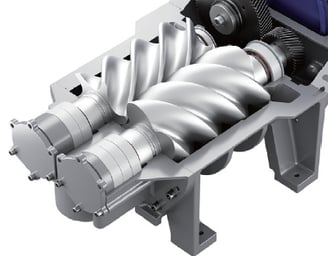

Positive Displacement (Volume Reduction) type of compressor. Using rotary movements to compress the air. Within the compressor, there is a set of male and female rotors. They are designed differently, when turned in unison, air will be trapped between them.

Typical Industrial Range - Flow/Capacity 50 ~ 3000 m3/hr, Pressure 4 ~ 15 barG.

Typical Application - Compressed air acts as a reliable, quick, and safe energy source for various industrial applications such as powering factory machinery including automation, assembly (power tools), forming (stamping, moulding, PET bottling), cleaning, stripping, painting, sand blasting, etc.

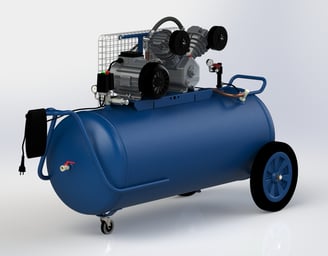

Positive Displacement (Volume Reduction) type of compressor that uses pistons driven by a crankshaft to deliver gases at high pressure.

Typical Industrial Range - Flow/Capacity 10 ~ 150 m3/hr, Pressure 3 ~ 10 barG. However high pressure booster can go up to 300 barG.

Typical Application - Various industrial applications such as powering factory machinery including automation, assembly (power tools), forming (stamping, moulding, PET bottling), cleaning, stripping, painting, sand blasting, etc.

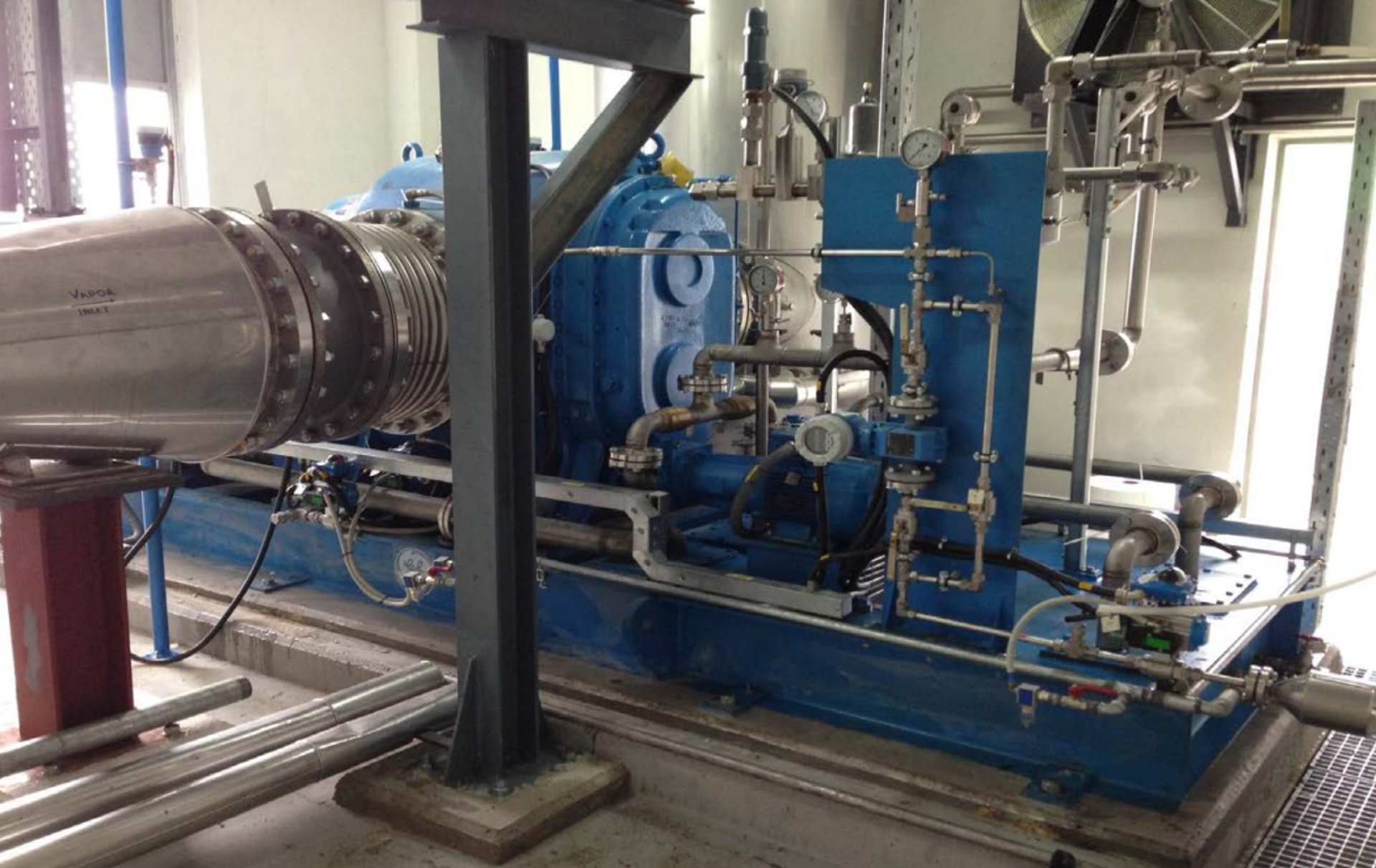

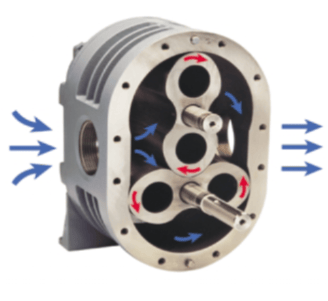

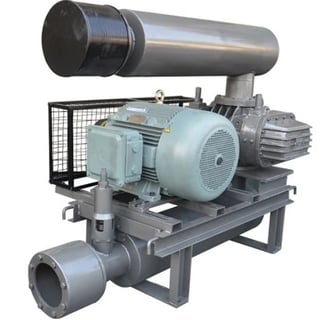

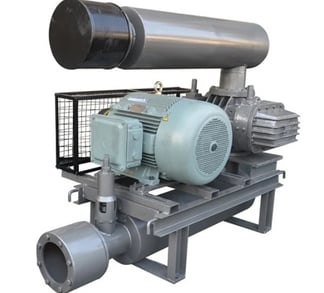

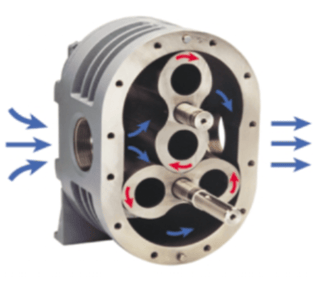

Positive Displacement (Volume Reduction) type of compression. Lobe blowers consist of two rotors spinning in opposite directions. The blower sucks in air, and the lobes spin the air around before pushing the air out.

Typical Industrial Range - Flow/Capacity 150 ~ 10,000 m3/hr, Pressure up to 1.0 barG. H

Typical Application - Waste Water Aeration, Pneumatic Conveying, Chemical Mixing, Combustion, Oxidation, Gas Boosting.

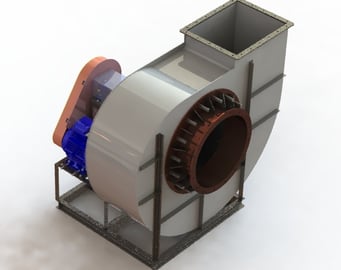

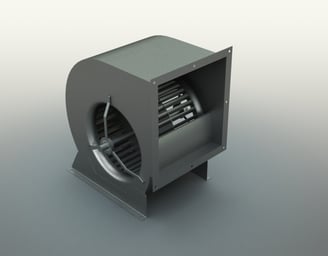

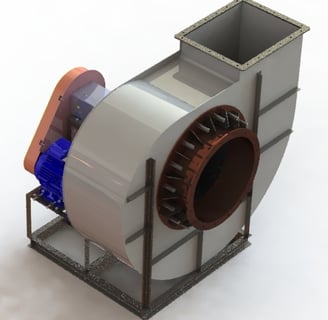

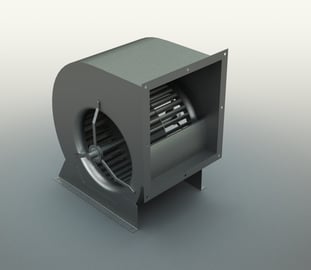

Dynamic Rotation (Kinetic Energy) type of operating principle. Centrifugal fans (also called radial fans or centrifugal blowers) contain impellers that discharge air at a 90-degree angle (perpendicular) to the air intake.

Typical Industrial Range - Flow/Capacity 1,000 ~ 50,000 m3/hr, Pressure up to 0.3 barG.

Typical Application - Heating, Cooling, Ventilation, Air Conditioning (HVAC), Conveying, Exhausting, Dedusting, Kiln burning, Air Filtration.

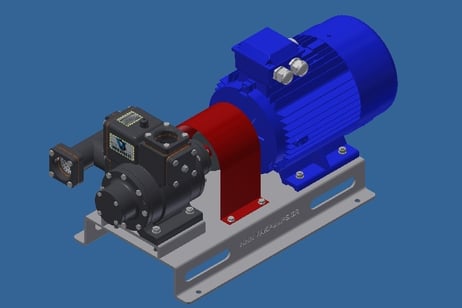

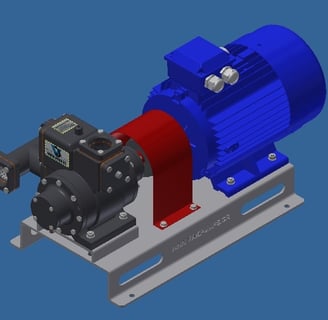

There are three common types of vacuum pump, Rotary Vane, Liquid Ring, and Screw Pump for general industrial application. They are all Positive Displacement (Volume Reduction) type of operating principle.

Typical Industrial Range - Flow/Capacity 20 ~ 1000 m3/hr, Pressure down to 0.5 mbarA.

Typical Application - Evacuation, mixing, drying, filling, degassing, clamping, handling lifting, dust cleaning, forming, pressing, laminating, painting, sand blasting, etc.

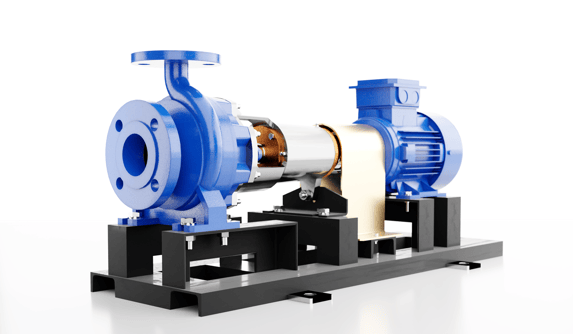

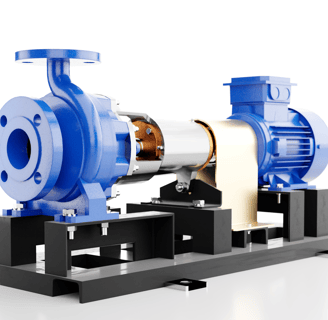

Dynamic Rotation (Kinetic Energy) type of operating principle. Fluid enters the rapidly rotating impeller along its axis and is cast out by centrifugal force along its circumference through the impeller's vane tips.

Typical Industrial Range - Flow/Capacity 2 ~ 1,000 m3/hr, Pressure up to 25 barG.

Typical Application - Desalination, Industrial Process & Waste Water Treatment, Water Supply for Cooling, Heating, Liquid Transfer, Cleaning Processes.
